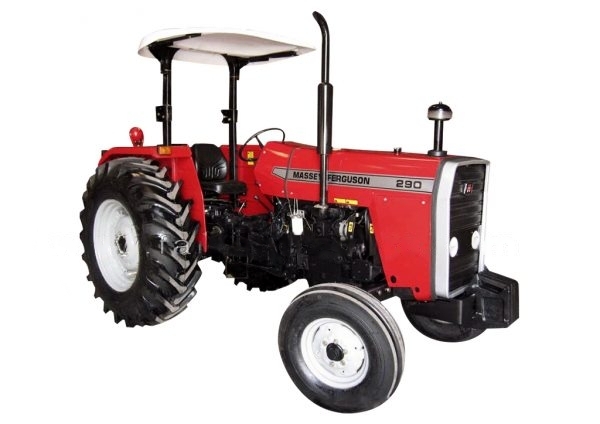

Massey Ferguson 290 Tractor Overview

The Massey Ferguson 290 is a high-performance tractor designed for medium to large-scale agricultural operations. It offers robust power, versatility, and reliability to handle a wide range of tasks efficiently.

Technical Specifications

1. Engine:
   • Type: Diesel, 4-stroke, direct injection
   • Displacement: 4100 cc (Approx.)
   • Horsepower: 78 HP
   • Cylinders: 4
   • Cooling System: Water-cooled
   • Fuel Tank Capacity: 90 liters
2. Transmission:
   • Gearbox: 8 Forward and 2 Reverse Gears
   • Type: Sliding Mesh or Optional Synchro Mesh
   • Clutch: Dual-clutch (Main Clutch Disc + PTO Clutch Disc)
   • Maximum Forward Speed: 32 km/h (Approx.)
3. Hydraulics & PTO:
   • Lifting Capacity: 2,140 kg
   • PTO HP: 67 HP
   • PTO Speed: 540 RPM
4. Dimensions and Weight:
   • Weight: 2,300 kg (Approx.)
   • Wheelbase: 2,200 mm
   • Ground Clearance: 420 mm
   • Length: 3,880 mm
   • Width: 1,950 mm
5. Tyres:
   • Front Tyres: 7.50-16
   • Rear Tyres: 16.9-28
6. Steering & Brakes:
   • Steering: Power steering for smooth handling
   • Brakes: Oil-immersed multi-disc brakes for efficient braking

Features and Applications

• Power and Performance: Equipped with a powerful engine that delivers high torque, making it ideal for plowing, heavy lifting, and extensive fieldwork.
• Durability and Reliability: Built with a durable chassis and components to withstand tough working conditions.
• Versatility: Can handle multiple implements for a variety of agricultural activities, from soil preparation to hauling tasks.
