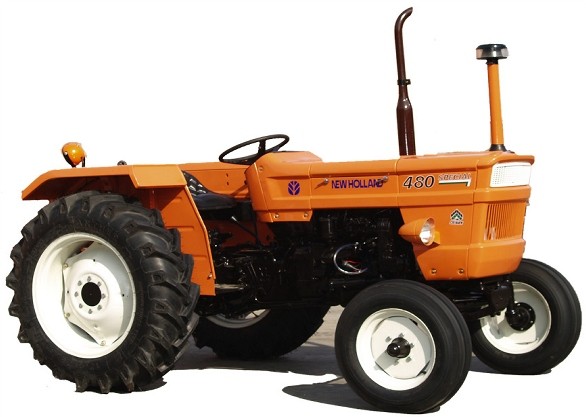

Fiat New Holland 480s Tractor Overview

The Fiat New Holland 480s is a reliable and compact tractor designed for small to medium-scale farming operations. It is well-suited for general-purpose agricultural tasks, offering efficiency, durability, and ease of operation.

Technical Specifications

1. Engine:
   • Type: Diesel, 4-stroke, direct injection
   • Displacement: 2931 cc (Approx.)
   • Horsepower: 55 HP
   • Cylinders: 3
   • Cooling System: Water-cooled
   • Fuel Tank Capacity: 45 liters
2. Transmission:
   • Gearbox: 8 Forward and 2 Reverse Gears
   • Type: Sliding Mesh
   • Clutch: Single dry plate clutch
   • Maximum Forward Speed: 30 km/h (Approx.)
3. Hydraulics & PTO:
   • Lifting Capacity: 1,500 kg
   • PTO HP: 46 HP
   • PTO Speed: 540 RPM
4. Dimensions and Weight:
   • Weight: 1,900 kg (Approx.)
   • Wheelbase: 1,950 mm
   • Ground Clearance: 360 mm
   • Length: 3,250 mm
   • Width: 1,650 mm
5. Tyres:
   • Front Tyres: 6.00-16
   • Rear Tyres: 12.4-28
6. Steering & Brakes:
   • Steering: Mechanical steering with an optional power steering upgrade
   • Brakes: Mechanical, dry disc brakes

Features and Applications

• Compact and Efficient: The Fiat New Holland 480s is designed for small to medium-scale agricultural tasks, providing good maneuverability and efficient power delivery.
• Versatility: Ideal for plowing, seeding, and transporting light to medium loads within the farm.
• Durability and Reliability: Built with robust components for long-lasting performance in various farming conditions.
